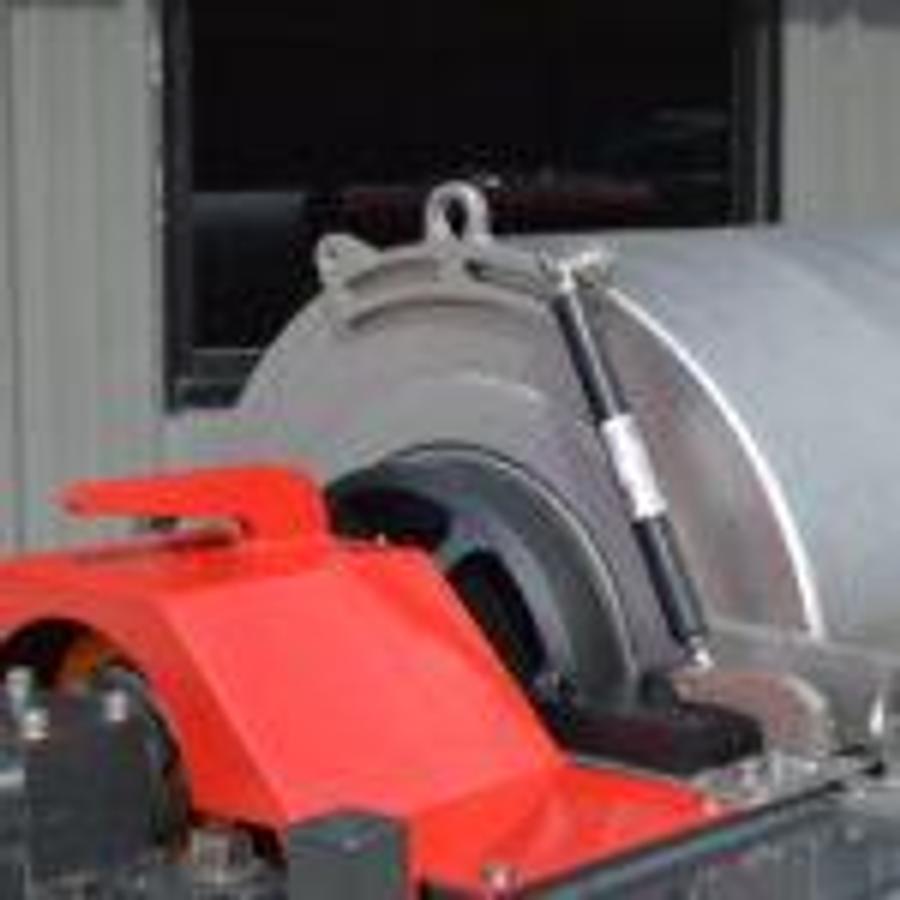

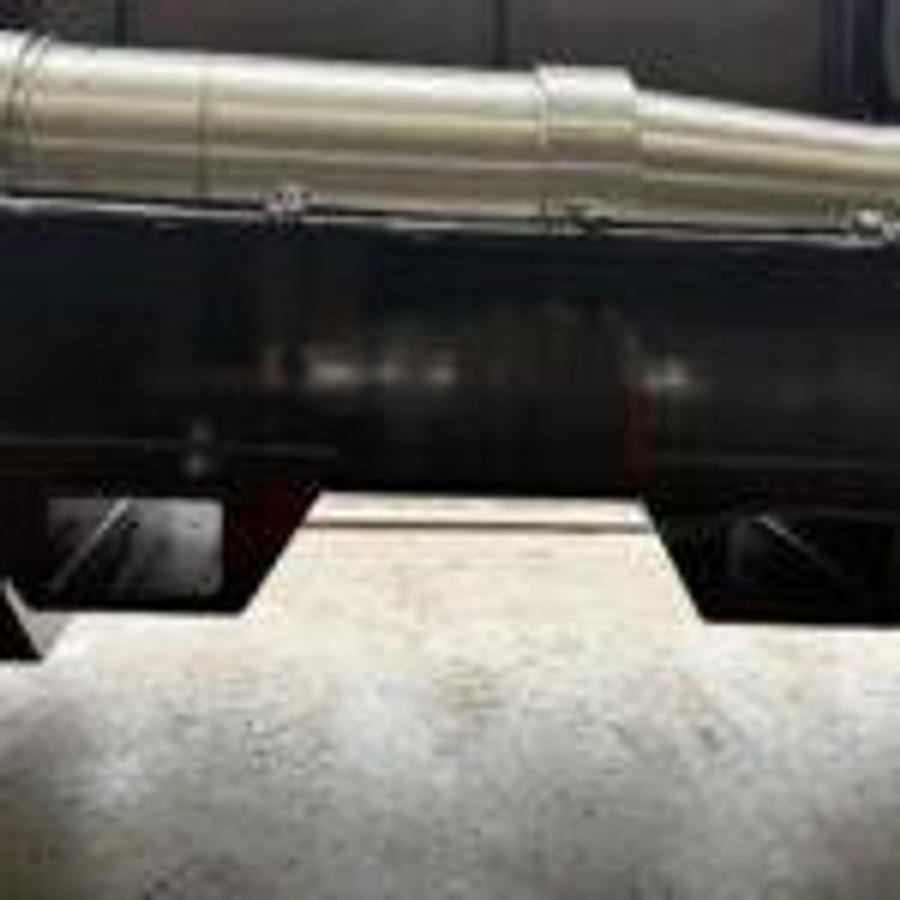

GREYSUN 1980 CENTRIFUGE
Featured
GREYSUN 1980 CENTRIFUGE
Location:Magnolia, TX
or
Call +1 936-524-5162
Description
- Patent Pending Fluid Port
- Upgraded Conveyor Discharge Design
- Field Replaceable Solid Discharge Wear Inserts

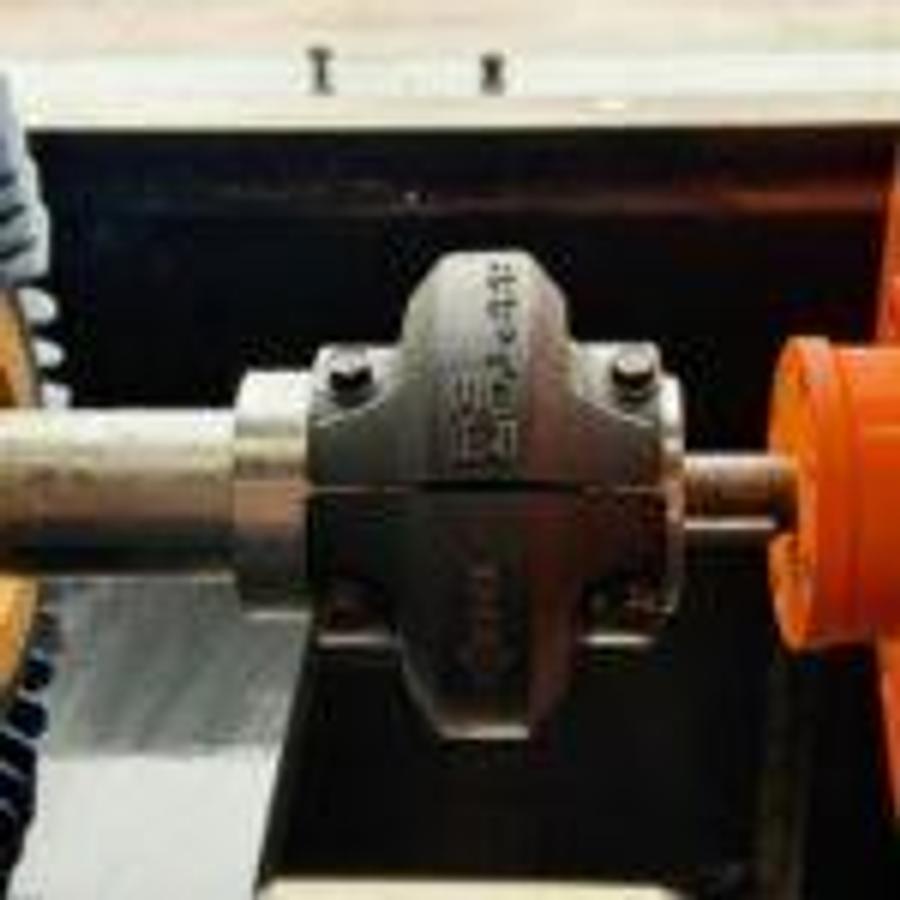

- Independent Feed Tube Support
- Cable Rack

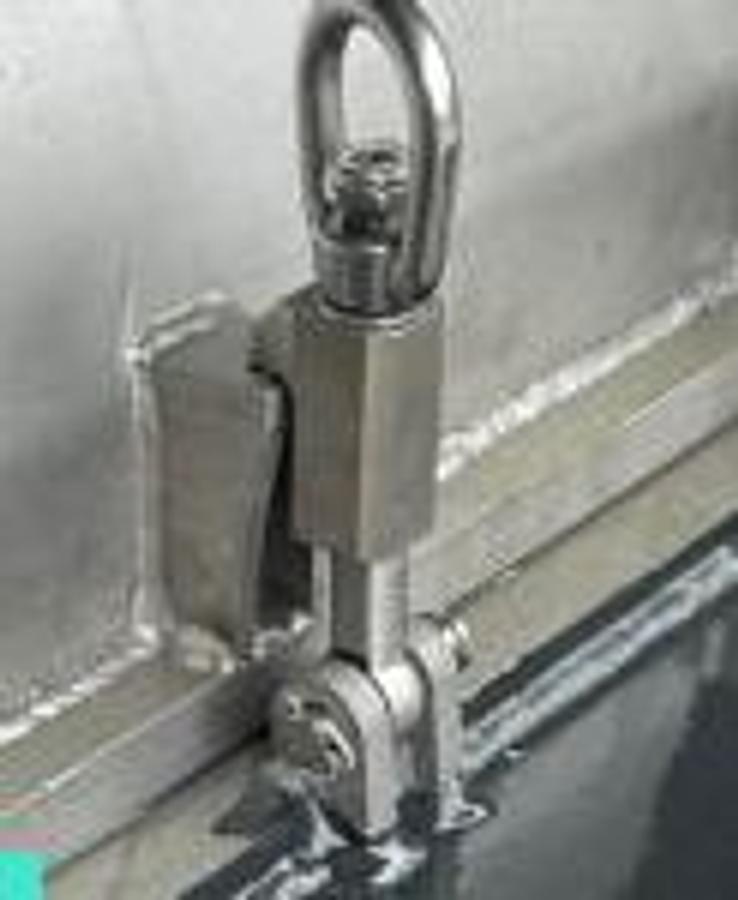

- User Friendly Case Clamps
- Forklift Pockets
- Lid Lift Assist
- Gearbox Anti-ejection Bracket
Specifications
| Manufacturer | Greysun |
| Model | 19X80 |
| Condition | New |
| Stock Number | 95151 |
| Maximum Speed | 3200 RPM |
| Maximum G Force | 2763 G |
| Maximum Flow | 528 GPM |
| Bowl Diameter | 19 |
| Bowl Length | 80 |
| Bowl Material | 2205 Duplex Stainless |
| Conveyor Differential | 6/29 Min/Max |

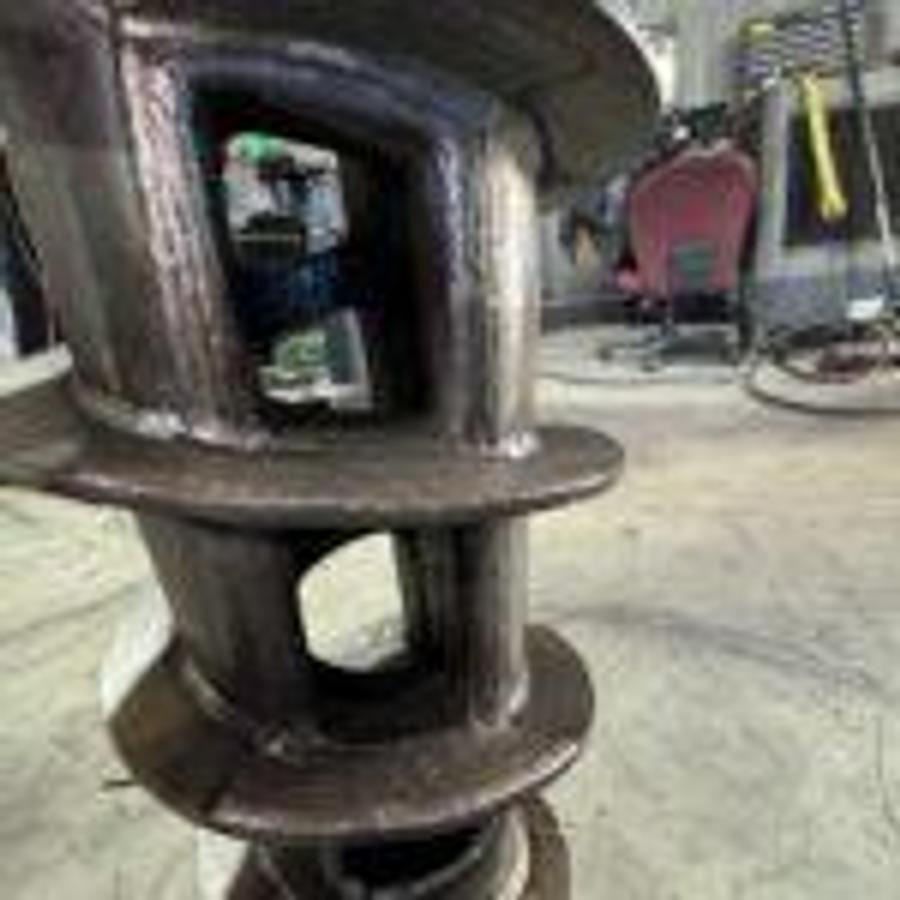

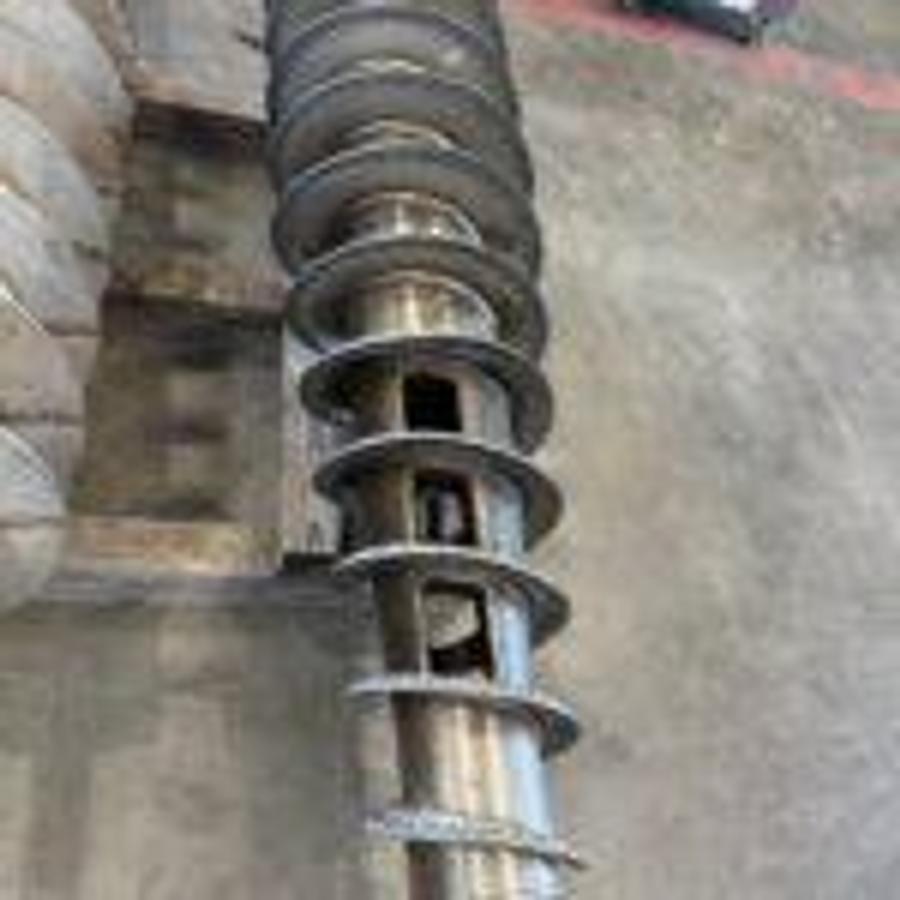

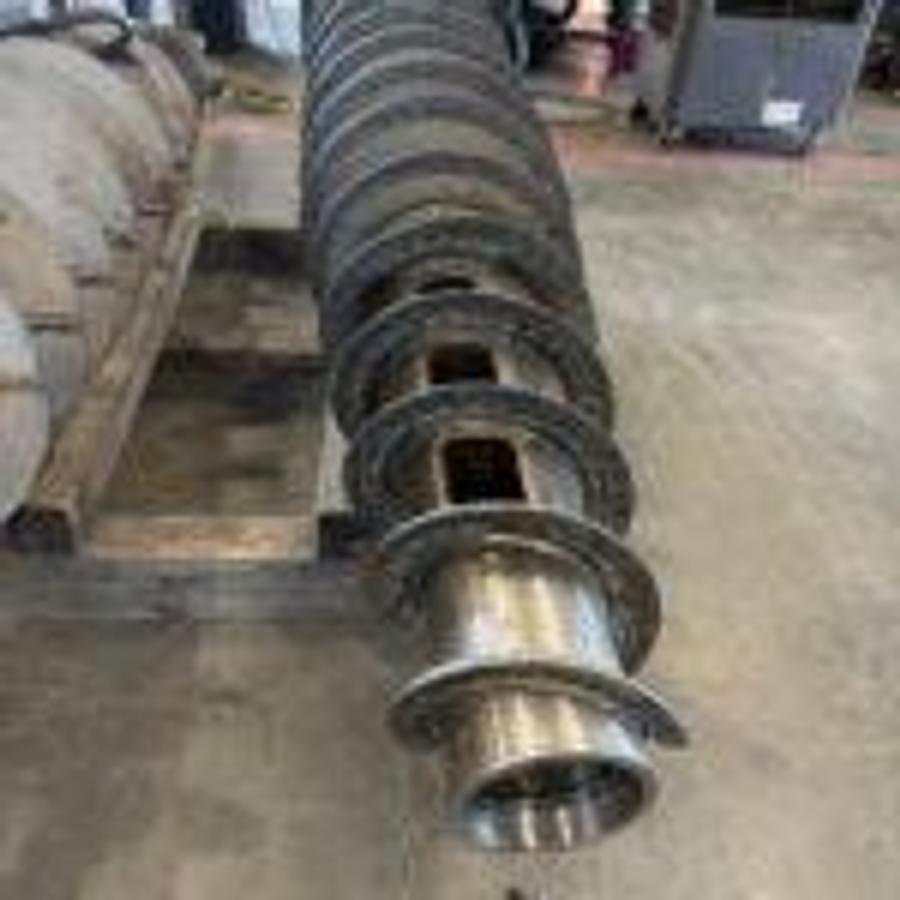

| Conveyor | Single Lead Radial Design |
| Conveyor Lead and Pitch | 5.89" |
| Conveyor Angle | 6 Degree |
| Gearbox Type | 6.0 KnM Two Stage Planetary |
| Gearbox torque | 53,000 inch lbs |
| Gearbox Ratio | 169:1 |
| Pool Depth Setting | 4 Adjustable Eppicentrics |
| Controls | VFD |
| Length | 200 Inches |
| Width | 54 Inches |
| Height | 58 Inches |
| Weight | 10,590 lbs |
| Power Main Drive | 125 HP |
| Power Back Drive | 20 HP |
| Voltage | 440/480 Volt |
| Frequency | 60 hz |
| Phase | 3 Phase |
