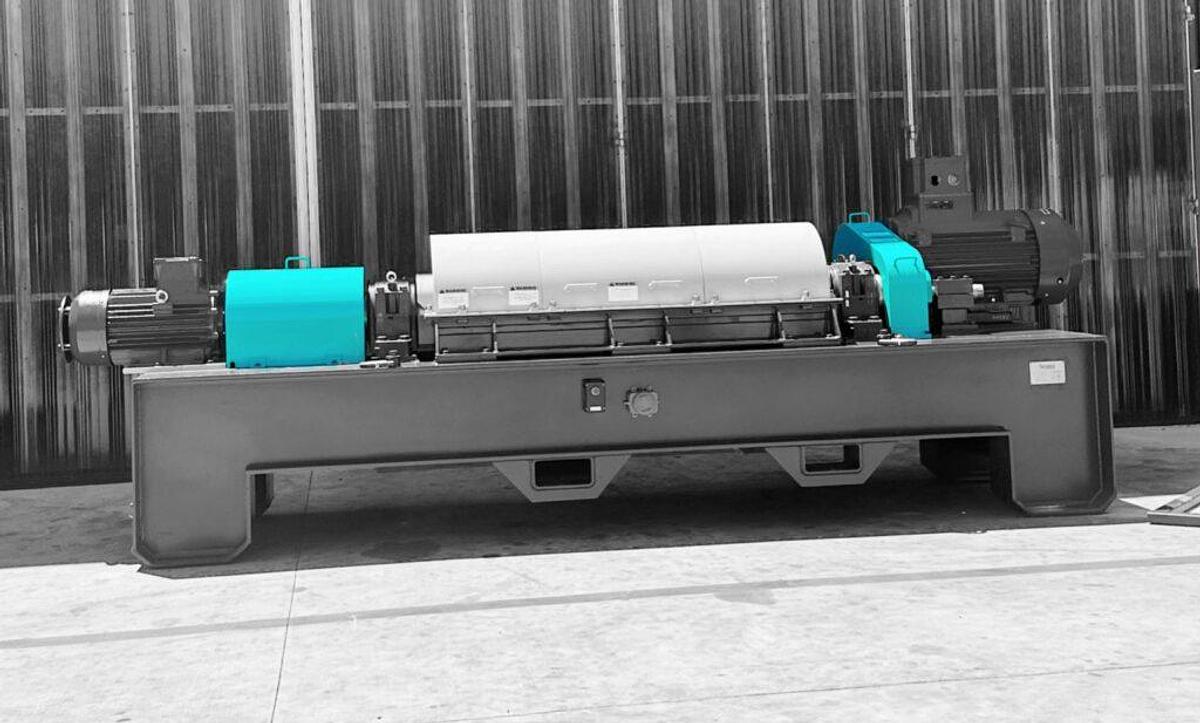

VAWZEN 24 X 72

VAWZEN 24 X 72

Location:Magnolia, TX

or
Call +1 936-524-5162

Specifications

ManufacturerGreysun
Model24 X 72
ConditionNew
Stock Number95152
Maximum Speed2900 RPM
Maximum G Force2866 g's
Maximum Flow590 GPM @ 9.8 PPG
Bowl Diameter24"
Bowl Length72 "
Bowl MaterialStainless Steel
Conveyor Differential6-53 RPM
ConveyorRadial Flights
Conveyor Lead and Pitch6"
Gearbox TypeP-90 Two Stage Planetary
Gearbox torque100,000 in lbs
Gearbox Ratio98:01:00
Pool Depth Setting0"-4"
ControlsVFD
Length209.75"
Width74.5624"
Height65.4375"
Weight16,390 lbs
Power Main Drive125 HP
Power Back Drive30 HP
Voltage380/480 V
Frequency50/60 HZ
Phase3 Phase
